Dew Point Transmitter Manufacturers In Navi Mumbai
Details of Dew Point Transmitter
Reliable Compact Dew Point Transmitter for Industrial Air & Gas Systems
We are a company manufacturing Compact Dew Point Transmitters for precision humidity monitoring in compressed air, nitrogen, and other inert gas environments. These compact units are engineered to deliver high-accuracy dew point measurements even in low-moisture ranges, ensuring better system control and energy efficiency.
Tailored for Tight Installations and Harsh Conditions
Built with a space-saving profile and rugged body, our transmitters fit easily into tight control panels, air dryers, and inline gas systems. The sensor technology ensures quick response time and excellent repeatability, making it ideal for real-time moisture tracking in critical industrial applications.
Detailed Specifications Overview
- Measuring range: –100°C to +20°C dew point
- Accuracy: ±2°C dew point
- Output: 4–20 mA / Modbus RTU (RS485)
- Power supply: 12–30 VDC
- Pressure range: Up to 50 bar
- Enclosure: IP65-rated stainless steel or anodized aluminum
- Operating temperature: –40°C to +60°C
Extensively Used in Industrial Units
- Pneumatic systems for air quality monitoring
- PET bottle blowing machinery
- Medical and breathing air applications
- Instrument air dryers and air separation units
- Glove boxes and dry chambers
Manufacturing Excellence with Advanced Sensor Calibration
We manufacture each transmitter using advanced polymer or ceramic sensor elements, calibrated at multiple dew point levels using NIST-traceable reference systems. This calibration process ensures that the device remains stable over extended operating periods and offers consistent performance even under fluctuating temperatures and pressures.
Maintenance Checklist to Maximize Service Life
- Avoid direct water contact; use a sintered filter for protection
- Check cable connections for oxidation or wear
- Calibrate annually or semi-annually, depending on the application
- Keep the ventilation clear around installed units
- Use desiccant dryers upstream to minimize sensor overload
Performance Advantages Summary
| Feature | Value for Industry Use |
|---|---|
| Compact Size | Fits in small panels and tight machinery enclosures |
| Fast Response Time | Detects humidity changes in seconds |
| Long-Term Stability | Minimal drift over years of continuous operation |
| Multi-output Compatibility | Seamless connection to analog and digital systems |
| Resistant to Vibration & Dust | Ideal for rugged industrial environments |
Offered Product

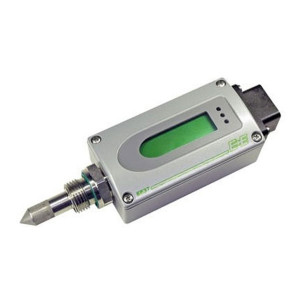

Dew Point Transmitter
PART CODE : CARE-EE371–Display Dew Point TransmitterDew Point Temperatures In The Range Of -60…-20°C (-76…-4°F) At Room Temperature Correspond To Relative Humidity Values Of 0.08…5.37% RH. The Measurement Of These Low Humidity Values Is Not Possible With Conventional Capacitive Measurement Methods. For The EE371/EE372 Series A Special Auto Calibration Procedure Is Utilized To Achieve High Accuracy Measurements At Lowest Dew Points Too.ApplicationMonitor... Read moreDew Point Transmitter Manufacturers In Ahmedabad
With Our Extensive Industrial Experience, We Are A Reliable Supplier Of Compact Dew Point Transmitters. Manufactured For High Accuracy And Reliability, These Devices Are Widely Used In Compressed Air Systems, Industrial Gas Monitoring, And HVAC Applications. Equipped For Continuous Monitoring, They Provide Accurate Dew Point Measurements, Ensuring Optimal System Performance And Preventing Moisture-related Issues. Our Transmitters Are Built To Last, Providing Fast Response Times And Stable Perfor Continue
Dew Point Transmitters In Pune
We Are A Trusted Manufacturer And Supplier Of Dew Point Transmitters, Developed To Measure The Dew Point Temperature Of Gases, Supplying Important Data For Controlling Moisture In Industrial Applications. Our Dew Point Transmitters Are Used In A Range Of Industries Such As Compressed Air Systems, Gas Plants, Refrigeration, And HVAC, Where Moisture Levels Must Be Accurately Monitored To Ensure System Efficiency And Performance. Equipped With Advanced Sensing Technology, These Transmitters Offer R Continue
MEAS Vacuum Transmitter Manufacturers In Vadodara
We Are The Foremost Manufacturer And Supplier Of MEAS Vacuum Transmitter. Our Offered MEAS Vacuum Transmitter Is Manufacture Using Most Excellent Grade Material And Innovative Technology Under The Direction Of Our Professionals. This MEAS Vacuum Transmitter Is Extremely Appreciated For Their Faultless Design, Excellent Performance, Unrivaled Efficiency And Lofty Endurance. Additional, Our MEAS Vacuum Transmitter Is Also Used In Diverse Types Of Material Handling Equipment. Clients Can Buy This M Continue
