Duct Mount CO2 Transmitter Manufacturers In Satara

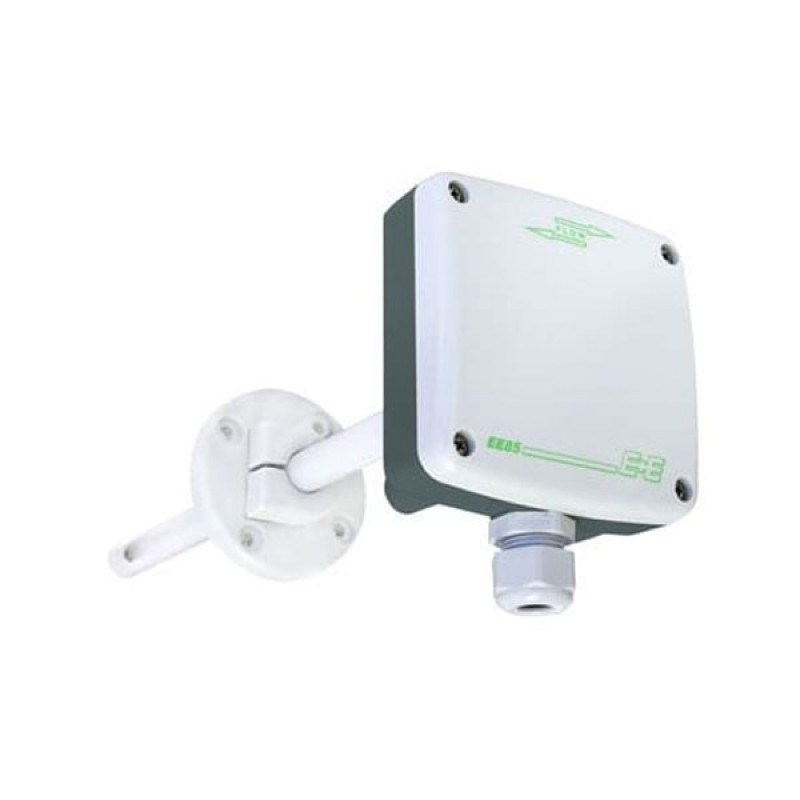

Details of Duct Mount CO2 Transmitter (EE-85)
The Duct Mount CO₂ Transmitter is designed for accurate, real-time monitoring of carbon dioxide levels in HVAC ducts, ventilation systems, and air-handling units. With long-life sensing technology and stable output signals, it ensures efficient air quality control in commercial, residential, and industrial environments.
Built for harsh duct environments, this transmitter uses a high-precision NDIR (Non-Dispersive Infrared) sensor to measure CO₂ concentration with excellent stability. The rugged probe design, integrated electronics, and easy mounting system ensure long-term reliability with minimal maintenance.
Features
- Duct-mountable probe design for direct installation into ventilation channels.
- Wide measurement range (typically 0–2,000 ppm / 0–5,000 ppm optional).
- Analog & digital output options (0–10V, 4–20mA, Modbus/RS485).
- Fast response time suitable for dynamic ventilation control.
- Temperature & humidity compensation for improved measurement accuracy.
- Long sensor life with minimal recalibration needs.
- Rugged housing suitable for HVAC and industrial conditions.
- Low power consumption for energy-efficient system integration.
- Easy installation with mounting plate and adjustable insertion length.
Applications
- HVAC ducts in commercial & residential buildings.
- Air-handling units (AHUs) for ventilation control.
- Fresh air systems for maintaining optimal indoor air quality.
- Industrial ventilation lines requiring CO₂ monitoring.
- Warehouse & cold storage ducts for controlled air flow.
- Smart building automation and BMS/EMS systems.
- Educational institutions for monitoring crowded spaces.
- Hospitals & laboratories where air quality is critical.
Technical Highlights
- Sensor Type: NDIR CO₂ sensor
- Output: 0–10V / 4–20mA / RS485 Modbus
- Power Supply: 12–24 VDC/AC
- Accuracy: ±(50 ppm + 3% of reading)
- Response Time: < 30 seconds (typical)
- Operating Temp: -10°C to +50°C
- Protection Class: IP54 or higher (model-dependent)
- Mounting: Duct probe with flange/plate
Benefits
- Enhances ventilation efficiency
- Reduces energy consumption in HVAC systems
- Helps maintain healthy indoor air quality
- Supports smart automation and building management
- Ensures compliance with IAQ standards
Offered Product
Duct Mount CO2 Transmitter (EE-85)
EE85 Is Optimized For Building Automation As Well As For Process Control Applications. It Measures CO2 Concentration Based On EE85 The Non-Dispersive Infrared (NDIR) Technology. A Patented Auto-calibration Procedure Compensates For The Aging Of The Infrared Source And Leads To Outstanding Long-term Stability.The Air From The Duct Flows Through The Probe Into The EE85 Enclosure And Back Into The Duct. Inside The Enclosure The Air Diffuses Through A Membrane Into The CO2 Sensing Cell. As There I... Read moreDuct Mount CO2 Transmitter (EE-85) Tamil Nadu
Accurate CO2 Monitoring For Industrial DuctsLeveraging Our Experience In Environmental Control Instruments, We Are Supplying The Duct Mount CO2 Transmitter (EE-85) For Precise Measurement Of Carbon Dioxide Levels In HVAC Systems, Industrial Ventilation, And Controlled Environment Facilities.Reliable Operation Across Harsh ConditionsWe Provide Transmitters Manufactured With Robust Housing And High-accuracy NDIR Sensors. These Units Are Widely Used In Factories, Laboratories, Pharmaceutical Continue
Duct Mount CO2 Transmitter (EE-85) Supplier Bengaluru
We Are Manufacturing Duct Mount CO2 Transmitters (EE-85) For Precise Air Quality Monitoring In HVAC And Ventilation Systems. The Unit Measures Carbon Dioxide Levels Directly Within Air Ducts, Ensuring Healthy Indoor Environments And Energy-efficient Ventilation Control. It Is Extensively Used In Commercial Buildings, Clean Rooms, And Process Facilities.FeaturesAccurate CO2 Detection – Uses Non-dispersive Infrared (NDIR) Sensing For Long-term Stability.Direct Duct Mounting – S Continue
Duct Mount CO2 Transmitter Manufacturers In Ranchi
We Are Fabricating Duct Mount CO₂ Transmitters (EE-85) Contrived For Accurate Indoor Air Quality Monitoring And HVAC System Integration In Hyderabad. We Are Offering One Of The Above Transmitters For Industrial, Commercial, And Institutional Applications Where Robust CO₂ Measurement Is Significant For Energy Cost Savings, Ventilation Control, And Compliance With Biodiversity Standards.With Our Meticulous Calibration And Strict Quality Control, We Are Supplying EE-85 CO2 Transmitters That P Continue
