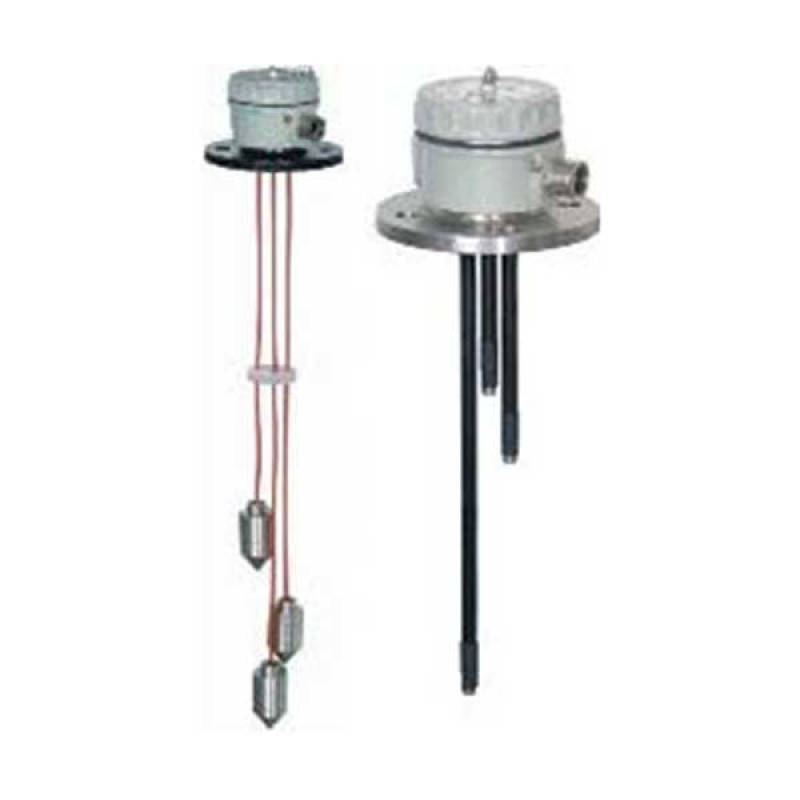

Details of Top Mounted Conductivity Level Switch

Point-Level Detection System Built for Tank Top Installations

We manufacture Top Mounted Conductivity Level Switch units to detect liquid presence or absence through electrical conductivity between probes. These are designed for vertical mounting and are suitable for storage tanks, sumps, vessels, and chemical holding units.

Our Top Mounted Conductivity Level Switch offers reliable operation even in corrosive or high-temperature fluids. The sensing probe setup triggers an output signal when the fluid touches a defined point, ensuring timely alerts or pump actions based on the level condition.

Key Design Features

  • Stainless steel or coated rod probes with adjustable lengths
  • Multi-point level detection from a single tank-top port
  • Control output for alarms, pumps, or valves
  • Compatible with conductive fluids like water, acids, and alkaline solutions
  • Housing is available in flameproof or weatherproof options

Used Commonly In

  • Water treatment and effluent plants
  • Acidic or chemical mixing tanks
  • Firewater and storage reservoirs
  • Beverage, pharma, and clean liquid industries

Technical Overview

  • Probe Material: SS316 / Teflon-coated
  • Mounting: Flange or threaded top
  • Output: NO/NC relay (potential free)
  • Power Supply: 230V AC / 24V DC
  • Response Time: <1 second

Why It Performs Better

  • Detects exact liquid levels with minimal electronics
  • Works reliably with highly conductive media
  • No moving parts — maintenance-free design
  • Can sense multiple levels with a single unit
  • Ideal for tanks where side entry isn’t possible

Offered Product

Top Mounted Conductivity Level Switch

Conductive Probes Are Used In Single And Multiple PointMeasurements SystemsLow Voltages Is Applied To The Electrodes As They Are Immersed In The Liquid.The Conductive Liquid Completes The Electrical Circuit Of The Control, Which Activates A Semiconductor Switch.The Advantage Of Conductive Probes Is Their Low Cost And Simple Design.The Disadvantage Is The They Are Limited To Point Measurement And Can Be Only Used With Conductive Liquids.... Read more
